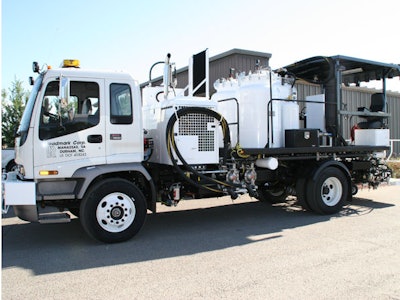

Paint Truck

Palletized and truck stripers are built contractor tough and designed for dependable daily use and a long service life. Single operator versatility available.

Cab and chassis with dual steering
6 speed Alison automatic transmission
Steerable pusher axle (12,000 GVW rated)
Air ride
(2) Epoxy lined 340 gallon paint tanks with stainless steel hydraulically driven agitators
4,400 lb. glass bead tank w/vacuum load system exhausted below deck through muffler
90 gallon black paint tank
Stainless steel 20 gallon water tank
All stainless steel plumbing with two sets of filters, two per color
Two 2” stainless steel load pumps with hose stored under truck
Crossover plumbing
(2) 8” two pass heat exchangers controlled separately with solid state thermostats (insulation blankets on heat exchangers)
Webasto self contained 12 volt furnace
Sullair 210 CFM air compressor with hydraulic pump & tank
Skip Line timing system with footage counters and digital speedometer. A cable for left side switch box will be installed in cab to enable movement of the rear box into the cab & chassis to facilitate “one man” operation
Flush-on-the-fly switches in control box
Actuator control switch for each gun
Tubular cart design extends to 68” – both sides
6 paint guns and 6 bead guns
96” wide platform with railings and rear access steps, rear canopy with actuated 4’x 8’ multi-function arrow board 25 L.E.D lamps
Full view console – weather resistant industrial – duty electrical lighted switches and controls with storage cover
Night light package (two cart lights, two canopy lights, 1 under canopy)
David Clark 3 station intercom system with 3 ultra-light headsets
Full back bucket seats with tool boxes below
Front and rear strobe lights and 48” light bar on cab
Hydraulic pointer bar – controlled from cab (left or right side mounting capability)
Camera system
Dual aluminum fuel tanks
Handgun & 25’ hose on hose reel mounted on rear of truck
