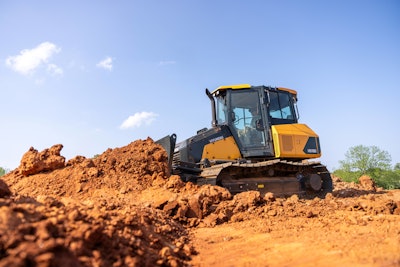

HD Hyundai Construction Equipment North America has announced the expansion of its product line into crawler dozers with the availability of its first new dozer model, the 115-net-hp (86 kW) Hyundai HD100.
The addition of dozers to the Hyundai product line broadens their line of earthmoving equipment, which includes wheel loaders, hydraulic excavators, articulated dump trucks, skid steers and compact track loaders, as well as equipment designed for material handling in specialized applications.
“The new HD100 dozer will be a great addition to the equipment fleets of earthmoving contractors, forestry, waste handlers and other customers who already enjoy the benefits of using Hyundai wheel loaders and excavators,” said Mike Ross, senior VP, HD Hyundai Construction Equipment North America. “It’s further evidence of the Hyundai commitment to providing the right solution for a wide range of earthmoving and material-handling applications.”
The machine’s undercarriage system includes dual-flange rollers outside the chain of the track and single-flange rollers inside the chain of the track to help the track stay on the undercarriage.
The Hyundai HD100 dozer is a 10-ton-class machine with a standard blade capacity of 2.9-yd3 (2.2-m3) and a digging depth of 1 ft., 6 in. (457 mm). The four-cylinder Hyundai G2 DM03 engine meets Tier 4 Final emissions standards. Standard operating weight is 23,589 lbs. (10,700 kg), and track length on the ground is 108 in. (2,737 cm). A hydrostatic transmission provides control of speed and torque.
Visibility and Technology
The Hyundai HD100 dozer offers visibility to the standard six-way angle blade. Positioning the electronic cooling system at the back of the machine results in an unobstructed view of the blade. Further adding to visibility of the working end of the dozer includes the narrow front hood, placement of the inline pre-cleaner under the hood, minimized cab pillars and maximized glass areas including all-glass doors. A rearview camera, high-illumination LED lights and four wiper blades are all standard.
“This new Hyundai dozer delivers best-in-class power-to-weight ratio and the best visibility to the dozer blade. Our dealers and customers, especially in landscaping and forestry, have already expressed a lot of interest in this machine," said David Spooner, product manager, HD Hyundai Construction Equipment North America.
The standard six-way variable-angle-pitch dozer blade – with a maximum angle of 25 degrees – delivers precision when grading or moving dirt, clay and other materials. The standard blade float function is for fine finishing or back grading. The machine is compatible with grading technologies that help novice operators. The 2D Smart Blade assist function, which comes standard, supports precision grading. The HD100 can also be ordered Trimble-ready from the factory. This optional 3D machine guidance and 3D machine control system activates automatic blade movements based on GPS coordinates.
Versatility
An LGP (low ground pressure) option is available when ordering the dozer with a wider 10-ft., 7-in. (3,226 mm) blade vs. the standard 8-ft., 11-in. (2,718 mm) blade, along with track shoes that are 4 in. (102 mm) wider than the standard shoes. Other available options include a parallel ripper or towing draw bar.
Other key specifications include maximum travel speed of 5.6 mph (9.0 km/hr), seven track rollers, shoe width of 1 ft., 8 in. (508 mm), ground contact pressure of 5.6 psi (38.6 kPa) with a standard blade. Ground pressure is 4.2 psi (29.0 kPa) with the optional LGP package.
“Customers know that, when they buy a machine with the Hyundai name, they will get a full-featured machine with more standard features, as well as Hyundai’s industry-leading warranty and support from Hyundai’s expanding network of dealers," said Spooner.
