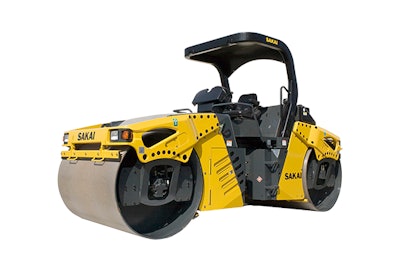

SW770 Sereis
Feature
Sakai patented compaction technologies SW770HF, standard model features 4,000vpm high frequency vibration by which can efficiently to achieve the density faster and create smoother hot mix asphalt (HMA) mat. On ND model, oscillatory or circular (normal) vibration is selected by switch at operator station depending on the job conditions. The oscillatory vibration is effective for thick layer compaction.
Operators comfort Full vuew over drum surface, drum edge and sprinkler nozzles. Patented dual water pump system for increased reliability. Easy Maintenance Rugged articulated centre-pin joint. Long life Sakai patented rubber isolators for drums.
Specification
*Specifications are subject change without notice. *Engine meets EPA standards. *Using low quality fuel may cause engine failure.
MODEL SW770 SW770HF SW770ND
WEIGHTS Operating weight kg(lb) 10,800(23,810) 11,320(24,955) Load on front axle kg(lb) 5,200(11,465) 5,460(12,035) Load on rear axle kg(lb) 5,600(12,345) 5,860(12,920) DIMENSIONS Overall length mm(in) 4,950(194.9) Overall width mm(in) 1,860(73.2) Overall heigth mm(in) 2,940(115.7) Wheelbase mm(in) 3,600(141.7) ENGINE Make ISUZU Model 4JJ1XDIA (Tier3) Type Diesel, Water-cooled, 4-cycle, with turbo charge VIBRATING SYSTEM Drive Hydrostatic Vibrator Eccentric shaft type
