Weiler equipment is sold and serviced exclusively at Cat dealers across North America, with factory trained technicians and readily available parts for unmatched service and support.
Weiler B400 Front Mount Broom
The B400 is the most innovative self-propelled broom on the market with features designed with years of industry experience. Built to withstand the demands of road construction, milling operations and all construction site needs.
The broom features a quick change brush head, available in 77’5” or 89.5” lengths, with variable down pressure and available 24” side shift. The hydraulic arm allows for broom changes in less than two minutes.
The fully enclosed cab provides excellent operator visibility and features 2 cab doors with tinted sliding windows. The cab is pressurized with a high efficiency filter system. The B400 features intuitive controls with a multi-function joystick, full color display and foot pedal or joystick propel option. Optional Bluetooth® radio with 2 speakers available.
Provided by Weiler
The B400 features the Cat C2.8 Tier 4 Final/ Stage V engine with 74 hp powers the 2-speed wheel motors with high speed transport mode and low speed sweeping mode. The hydraulic tilting cab provides access to the optional 100 gal (379 L) water tanks. Multiple doors provide access to the engine and hydraulic components.
Weiler P385C Paver
Weiler’s P385C paver continues to raise the standard for commercial class pavers with improvements to provide performance, reliability and outstanding mat quality in a wide range of applications.
The P385C features a Cat C3.6 Tier 4F/Stage V engine with an increase to 120 hp (90 kw) for unmatched power and performance. The best-in-class undercarriage features 90” (2286 mm) track length, 68” (1727 mm) of ground contact and 140 mm track chain pitch provides smooth ride and excellent flotation with automatic track tensioning.
The improved conveyor drive system features a sealed chain case, hydraulic motor with heavy duty bearings and splined shaft for increased reliability.
Provided by Weiler
An updated hydraulic system with proportional valving provides variable speed and reversible conveyors and augers. The larger tunnel height allows for lower conveyor speeds without loss of material output.
The Weiler designed 3,700 lb (1678 kg) screed features a paving range of 8’ to 15’ 8” (2.2 m to 4.8 m) with industry leading mat quality. The redesigned heating system eliminates GFCI breakers and utilizes insulation monitoring for increased reliability and performance.
Three different operating positions allow for optimal visibility and control with the adjustable, magnetic-resistance steering system. Optional screed mounted control panels give operators additional function control from screed level.

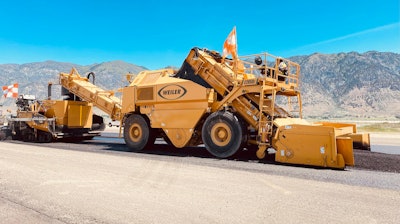

Weiler E2850C Remixing Transfer Vehicle
The Weiler E2850C Remixing Transfer Vehicle builds upon the success of previous Weiler MTVs with innovative new features engineered to maximize productivity while providing the lowest operating costs.
The E2850C features 25 tons of onboard storage, enhanced elevator motors and triple-pitch remix augers to provide 600 tons per hour discharge capacity for non-stop, non-contact paving with reduced particulate and thermal segregation.
Provided by Weiler
The new, front-mounted control station layout features increased visibility with a 10” color, touch screen display with integrated camera along with proportional conveyor swing joystick control. The crab and coordinated rear steer with auto-center is standard for a 15’ inside turning radius.
Weiler’s proven storage hopper management system, paver hopper management system with distance to paver control and auto-center options allow the operator to focus on truck exchanges while maintaining proper material feed to the paver.
Service is simplified with ground level fueling, improved pump access and large pivoting hood for access to daily service points. Full-width, hydraulic drop-down floors along with four clam-shell doors for ground level access to the storage hopper and remix augers provide unmatched access for cleanout and machine inspection.
